Heavy-Duty Cut to Length Line for 4-16mm Steel Coil

Processing thick steel coil requires a different level of machine strength, stability, and cutting capability compared with standard-gauge sheet metal. For steel services centers and heavy metal processing applications, heavy-duty cut to length line provides an efficient solution for converting thick coils in accurately sized flat sheets.

Kinbenz manufactures customized cut to length line designed for heavy-gauge steel coil processing, including applications covering 4-16mm thickness.



Why 4-16mm Steel Requires Heavy-Duty Cut to Length Line

Thick steel coil has significantly greater weight, rigidity and resistance to deformation. During production, the equipment must provide sufficient force and structural stability at every stage.

Heavy-duty cut to length line needs to handle several key requirements:

• High coil loading and feeding capacity
• Strong leveling force for thick steels
• Stable material feeding and alignment
• High cutting force
• Rigid machine structure
• Reliable continuous operation

The mechanical structure of the equipment is particularly important. A rigid frame and properly designed leveling and feeding systems help maintain stable material movement throughout the production process.



Key Sections of Heavy-Duty Cut to Length Line

Heavy-duty Leveling System

Leveling thick steel requires considerably more force than processing thin sheet. The leveling section must be designed to provide sufficient pressure and rigidity while maintaining consistent material flatness.

For 4-16mm steel coils, the leveling system is therefore one of the most important sections of the production line.

Heavy-duty Shearing System

After the material reaches  the required length, the shear cuts the steel coils into individual sheets. Thick-gauge steel requires a powerful and stable shearing system capable of handling the required cutting force.

Accurate cutting also depends on stable feeding and proper synchornization between the feeding and shearing systems.

Material Handling and Stacking

After cutting, the finished sheets can be transferred and stacked automatically. Automatic stacking system reduces manual handling and helps maintain an organized production workflow, particularly when processing heavy steel plates.



From Steel Coil to Finished Sheets

Typical heavy-duty cut to length process follows these stages:

Steel coil → Uncoiling → Leveling → Edge Trimming (If necessary) → NC Length → Feeding → Precision Cutting → Sheet Stacking

Each section works together to ensure stable processing and consistent finished sheet dimensions.

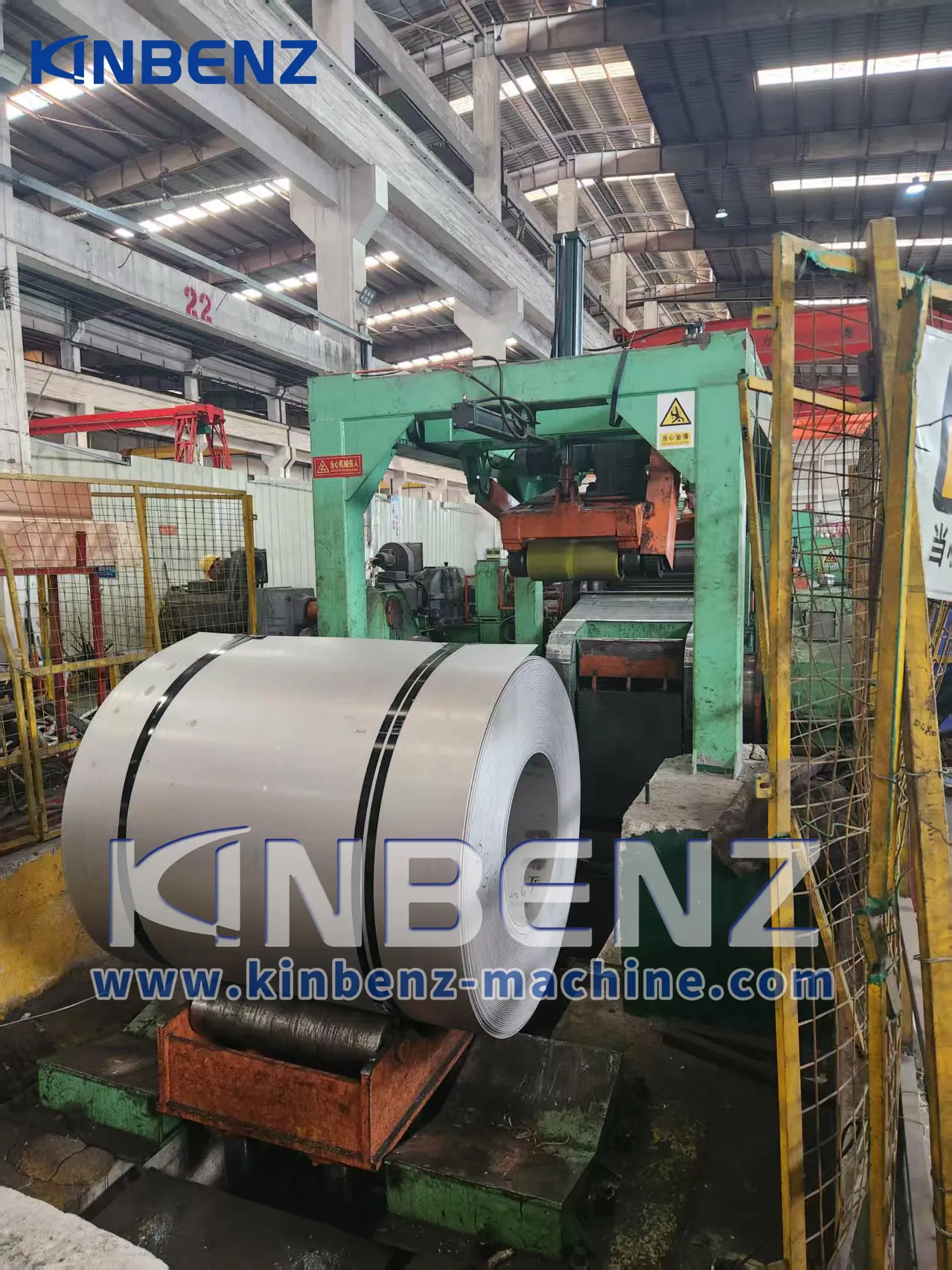

Steel coil

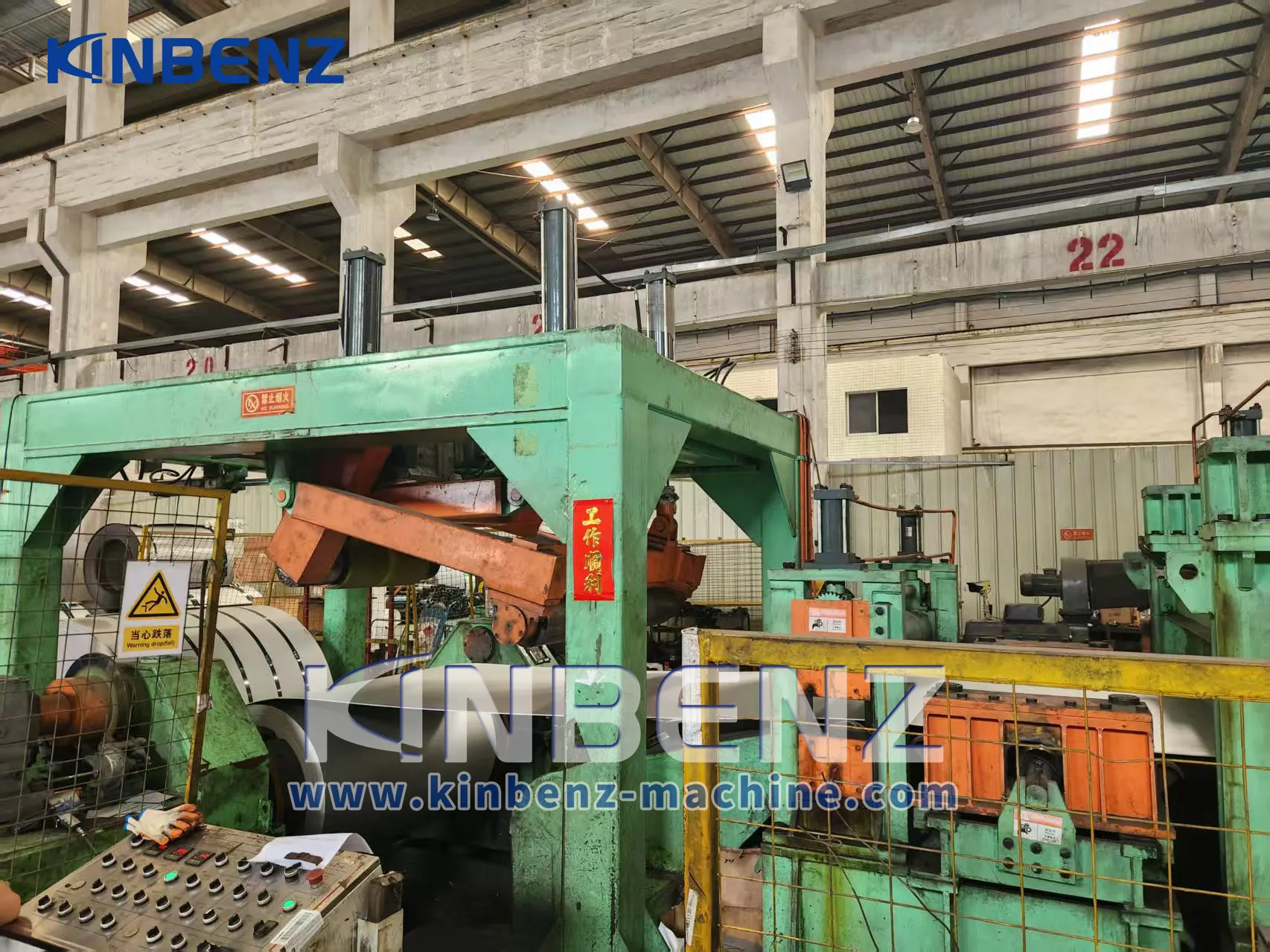

Uncoiling

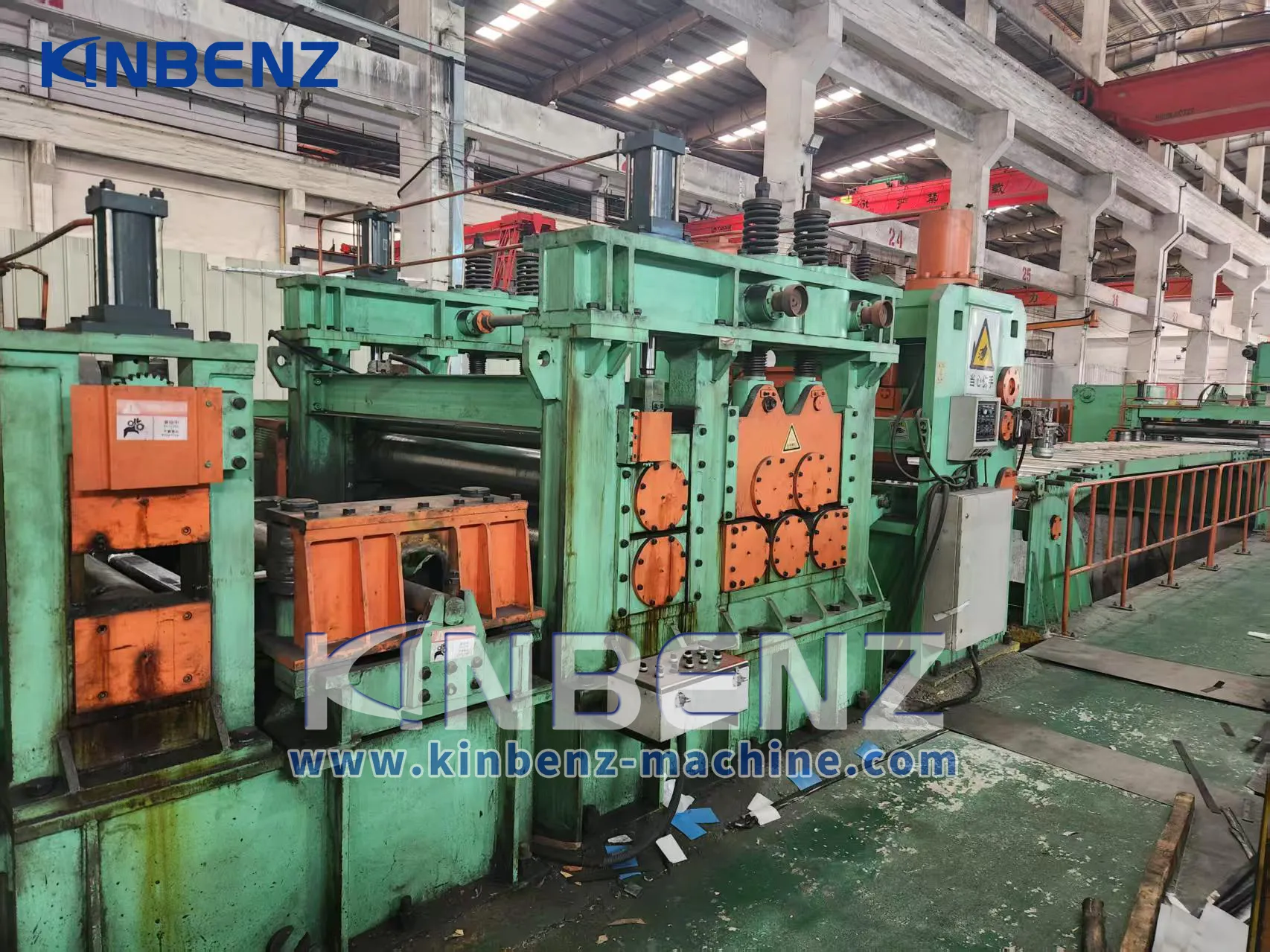

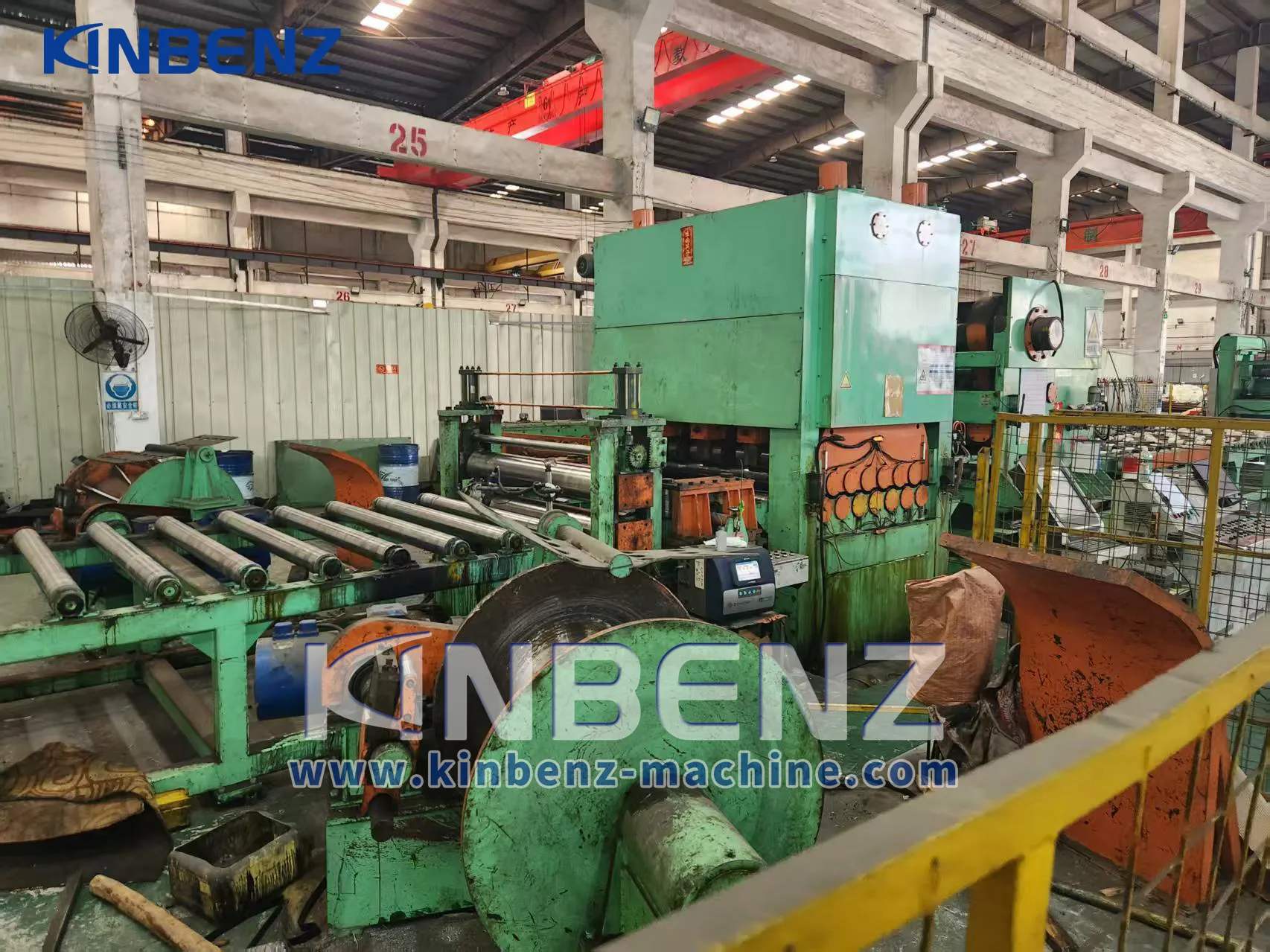

Leveling

NC Length

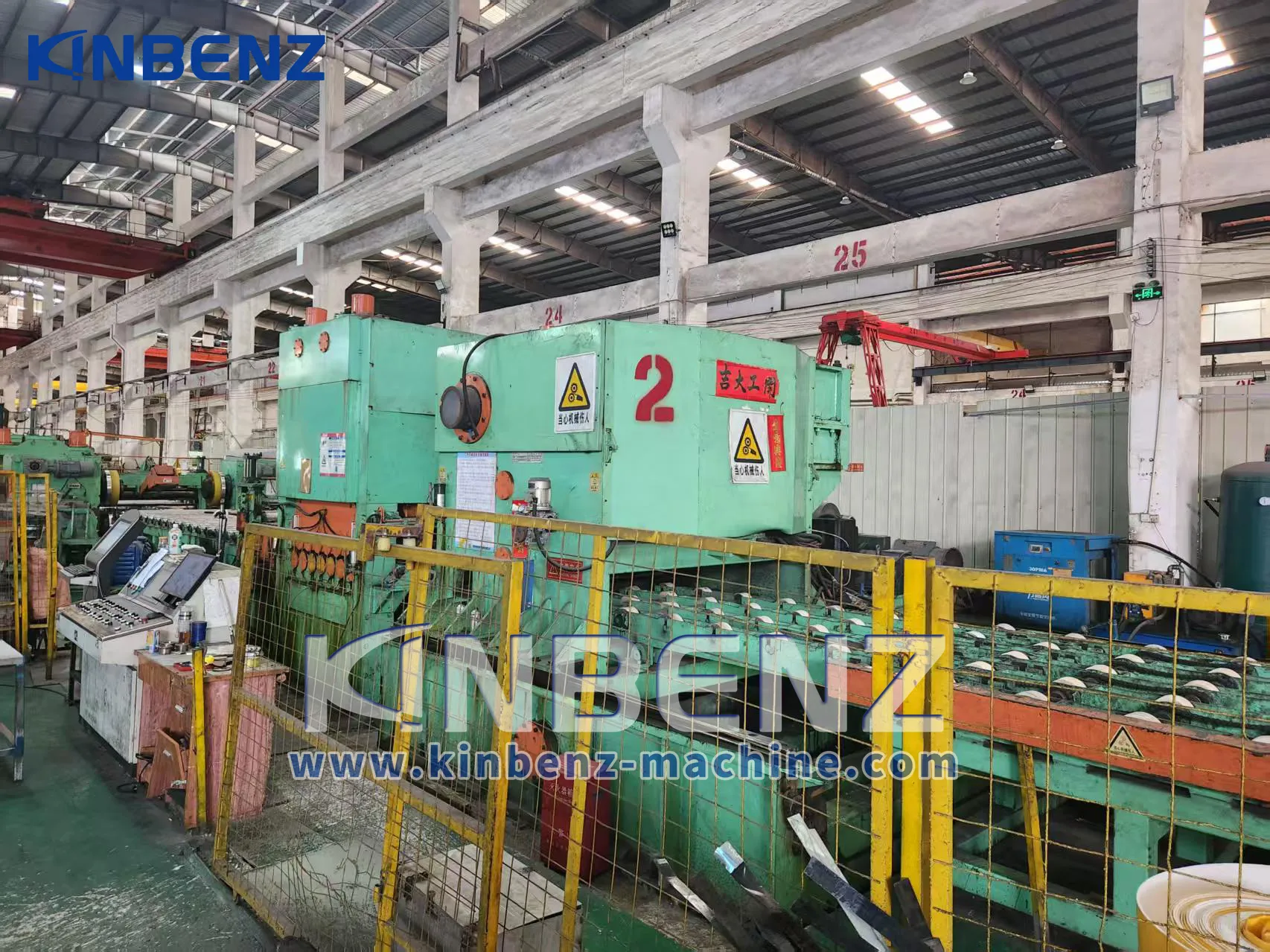

Cutting

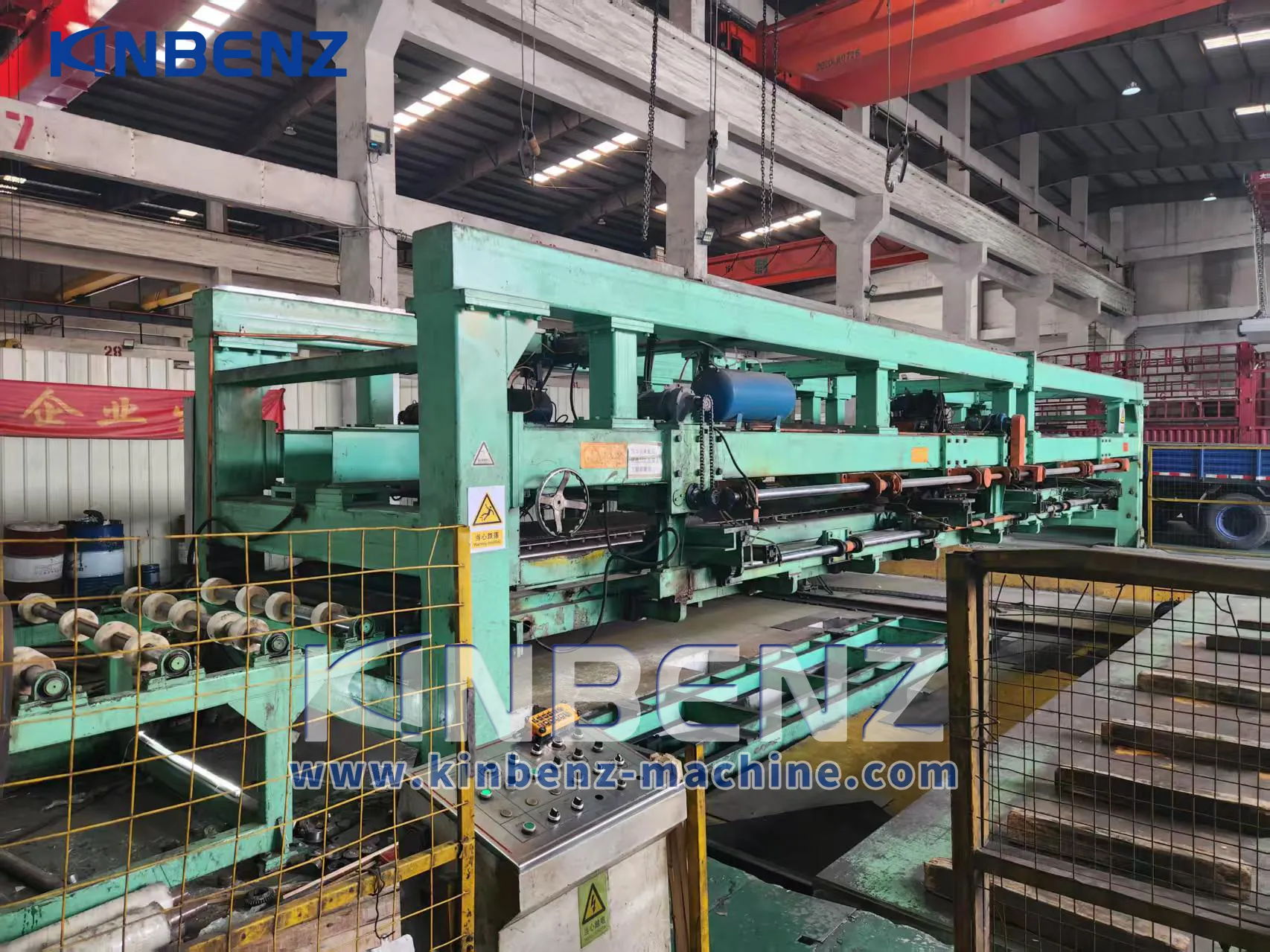

Stacking



Applications of 4-16mm Heavy-Duty Cut to Length Line

Heavy-duty cut to length line is widely used for processing thick steel coils in industries such as:

• Structural steel fabrication
• Construction
• Heavy machinery manufacturing
• Steel service centers
• Industrial equipment manufacturing
• Metal fabrication

They are particularly suitable for applications where thick, flat and accurately cut steel sheets are required.



Kinbenz Heavy-Duty Cut to Length Line

With experience in metal coil processing machinery, Kinbenz provides heavy-duty cut to length solutions for customers processing thick steel coils. The line can be configured according to material type, coil width, thickness, coil weight, sheet length and production requirements.

For applications involving 4–16mm steel coil, equipment design focuses on machine rigidity, leveling capability, feeding stability and reliable shearing performance.

Kinbenz — heavy-duty cut to length solutions for thick steel coil processing.
