What is a Simple Cut to Length Line?

Compared to a standard cut to length line, the simple version features fewer components, a more compact structure, and reduced investment costs. Despite its simplicity, it still meets the demands of processing a wide range of materials, making it a highly option for small to medium-scale production.



Main Components of a Simple Cut to Length Line:

1. Loading Coil Car - Efficiently loads the coil onto the uncoiler.

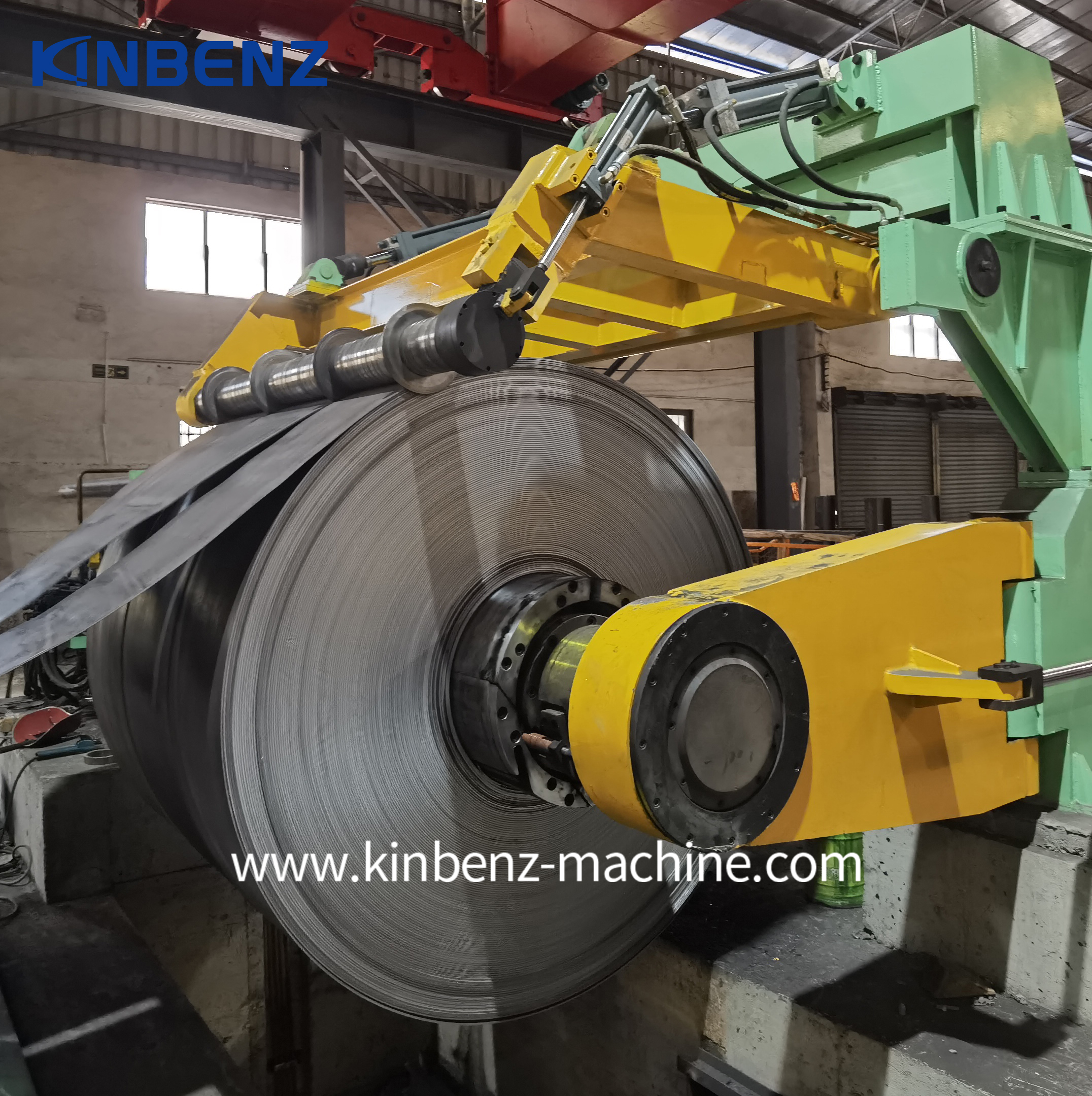

2. Hydraulic Cantilever Uncoiler - Holds and unwinds the coil securely

3. Leveler - Corrects coil flatness for better cutting quality.

4. Shearer - Accurately cuts sheets to the required length.

5. Conveyor - Transfers sheets smoothly to the stacking area.

6. Simple Hydraulic Lifting Table - Collects and stacks sheets in order

This streamlined design ensures ease of operation, low maintenance requirements, and reduced overall cost.



Key Features & Advantages

• Cost-Effective - Fewer parts mean lower investment and reduced maintenance costs.
• Adaptable to Multiple Materials - Suitable for processing carbon steel, stainless steel, galvanized steel, aluminum and others.
• Customizable Design - Configurations can be adjusted based on coil width, thickness and production requirements.
• Efficient Production Speed - Running speed up to 0-40m/min, ideal for light and medimum-duty processing needs.
• Compact Layout - Space-saving design suitable for factories with limited floor area.



Applications:

The Simple Cut to Length Line is widely applied in:

• Sheet metal service center
• Construction material suppliers
• Appliance and furniture industries
• Automotive and light machienry manufacturing

Its versatility and lower investment cost make it particularly attractive for business seeking to boost production efficiency without overspending on equipment.



FAQ: Simple Cut to Length Line

Q1: What's the main difference between a simple and a standard cut to length line?

A: The simple version has a more compact structure with fewer components, making it easier to operate and more cost-efficient while meeting most sheet cutting needs.

Q2: What materials can be processed?

A: It can handle steel, galvanized steel, stainless steel, aluminum, and copper, depending on the configuration.

Q3: What is the maximum speed?

A: The line can operate at 0-60m/min, suitable for small to medimum production volumes.

Q4: Can the machine be customized?

A: Sure, KINBENZ offers customized solutions based on your required coil width, thickness, and sheet length.
